Product introduction：
-Solid Shaft Incremental encoder optical encoder
-Shaft Diameter:Φ8mm (D type)
-Output mode : Opencollector output,voltage output,push-pull output,line driver
-Pulse :Max to 23040P/R
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀50mm
Product introduction：
-Solid Shaft Incremental encoder optical encoder
-Shaft Diameter:Φ8mm (D type)
-Output mode : Opencollector output,voltage output,push-pull output,line driver
-Pulse :Max to 23040P/R

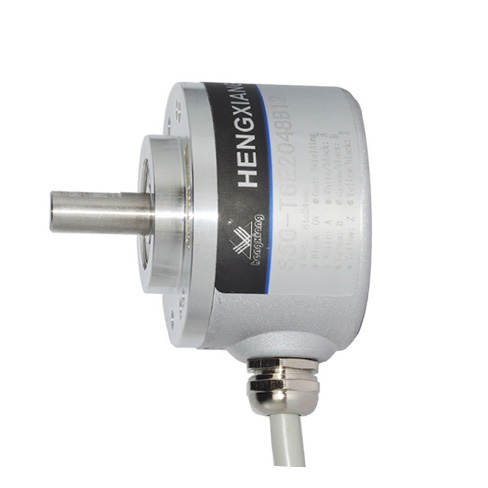

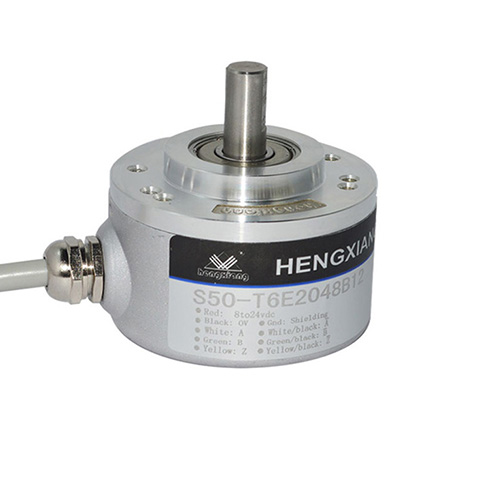

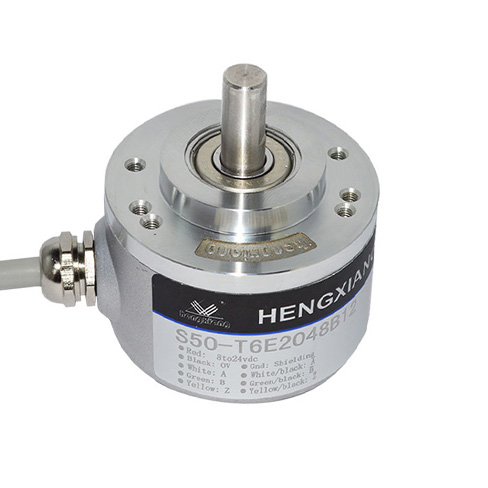

S50-T Solid Shaft Incremental encoder optical rotary encoder 1200ppr voltage output axial cable
Our Selling points
Encoder type：Incremental encoder
Thickness: 30mm
Shaft length: 16mm
Solid Shaft diameter: 8mm (D shape)
Environmental humanity: Operating and storage: 35~85%RH (non-condensing)
Protection grade: IP50; IP65
Top response frequency: 300KHZ
Shaft Material: Stainless steel
Package: Carton box
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Product Information

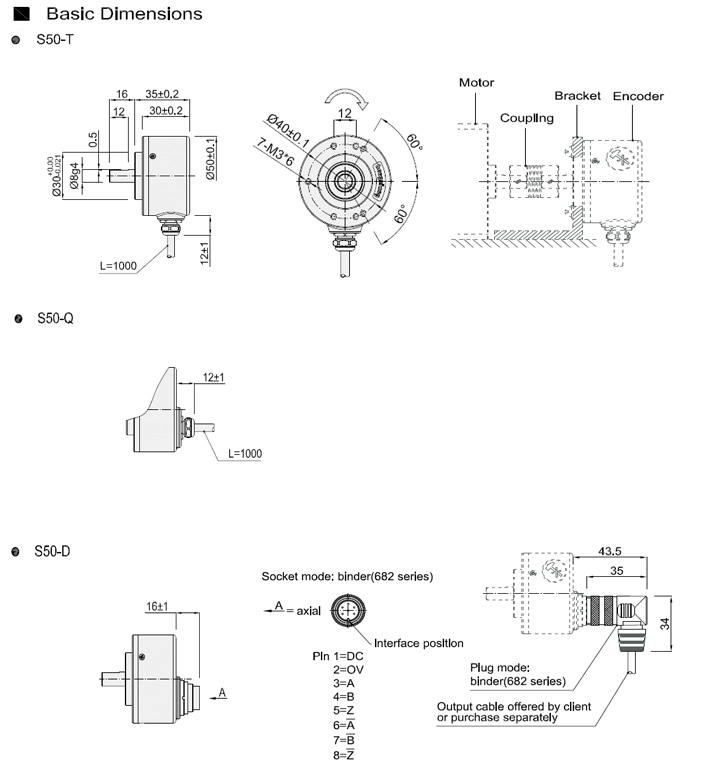

| ITEM | PARAMTERS | ||||||
| External dimensions | External diameter: 38mm ;Thickness: 28mm ;Shaft diameter: 6mm | ||||||
| Resolution |
50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200 ;2000;2048;2500;5000；8192;10000；11520；16384；20000；23040 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Socket/Cable out from side & back | ||||||
| Protection grade | IP50 & IP65 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 190g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | |||||
| Top response frenquency | 100KHZ | 200KHZ | |||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5v | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | |||||
| Origin motion | low lelvel available | high level available | low level available | high level available | |||
| starting torque | less than 10mN.m | ||||||
| Intertia moment | less than 3x 10-6kg.m2 | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | ||||||
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for three axis individually | ||||||
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | ||||||
| Material | Main body: aluminium alloy | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Technical Theory
RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Matters needing attention
1. Please read the encoder specification carefully before installation
2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
8. The encoder cable signal can’t be drew or bent forcibly.
Shipment
1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
2. You could select the express according to your requirements if freight collector
3. If you do not have any courier account, we will check and find a cheapest and safety express for you.
4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
FAQ
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: Where is your factory?
A: Our factory is located on Shanghai City.
Q: Do you test your encoder product before shipment?
A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.
