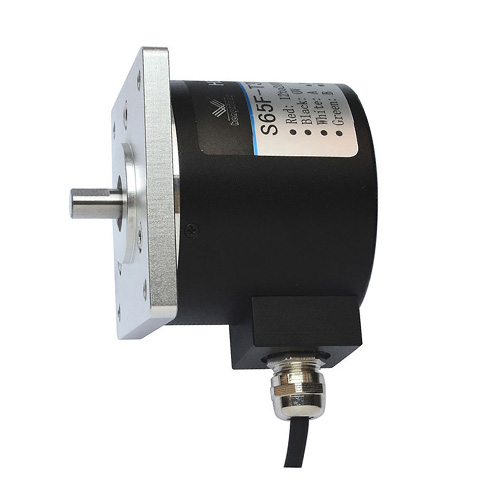

S65F solid shaft rotary encoder Incremental rotary encoder with flange 8mm D-shape 23040 pulse

Product introduction:

-Incremental rotary encoder with flange

-Diameter of shaft:Φ8mm (D type)

-Output phase:Phase A,B,Z or A- B- Z-

-Protection level: IP50 & IP65

Data download
Detail display

S65F solid shaft rotary encoder Incremental rotary encoder with flange 8mm D-shape 23040 pulse



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.


S65F Series encoder Product Basis information


Items Basic parameters

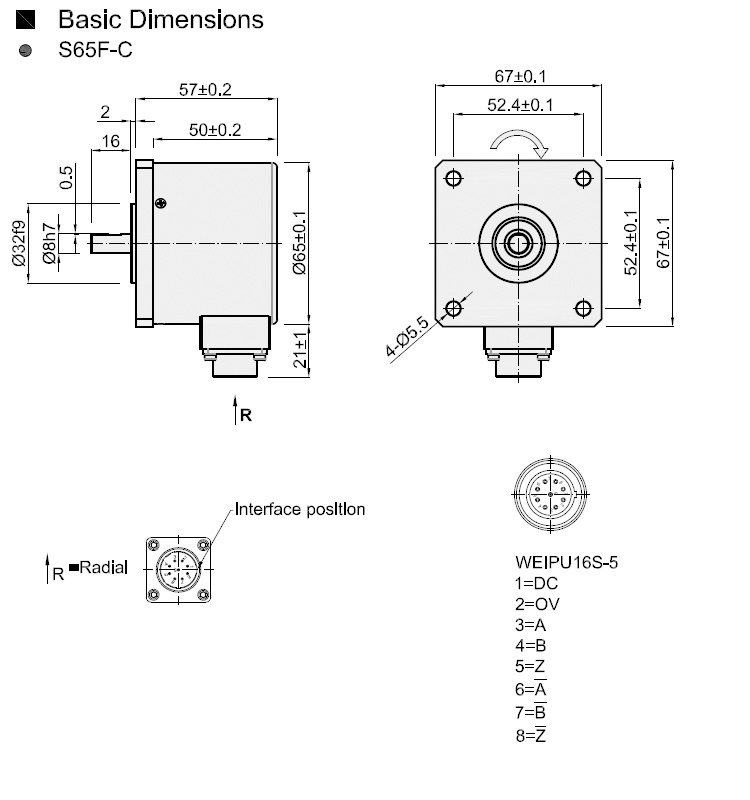

External dimensions External diameter: 65mm,Thickness: 52.5mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side with metal sleeve
Socket out from side
Output mode Open Collector(NPN) circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 190g (with package)
Certification CE



More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production



Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· VFD

· Inverter

· Variable frequency driver

· Embroidery machine

· Elevator

· Printing machinery

· Projector

· Injection molding machine

· Disc shoe machine,

· Textile dyeing



Advantage of “HENGXIANG” encoder factory

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment
