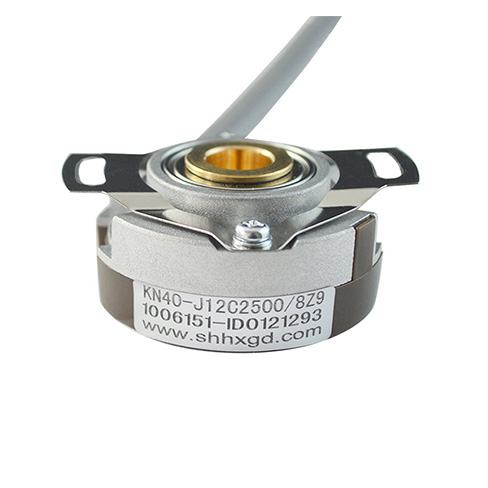

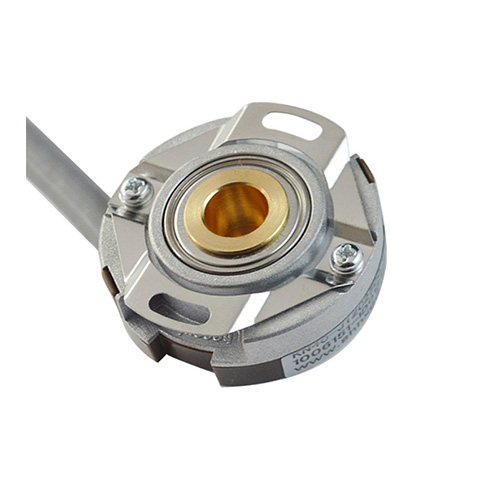

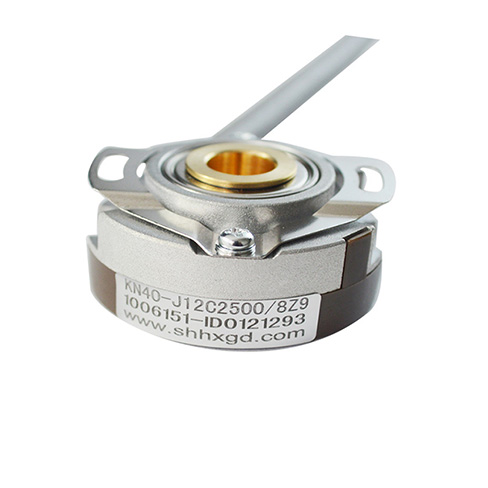

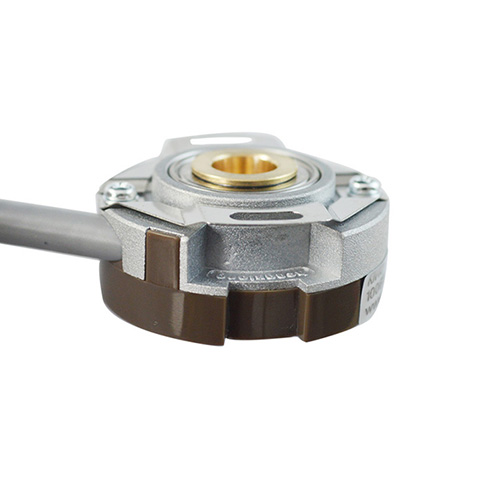

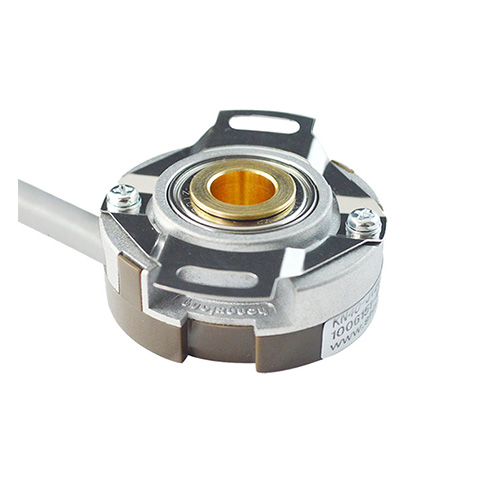

KN40 Servo Motor Rotary encoder, speed and position feedback for motors Ultra thin photoelectric encoder

Product introduction:

-External diameter Φ40mm,thickness 20mm

-Resolution:up to 20000P/R

-Top response frequency:300KHZ

-Protection:IP40

Data download
Detail display

KN40 Servo Motor Rotary encoder, speed and position feedback for motors Ultra thin photoelectric encoder


Main Feather of KN40 encoder

Encoder type: Incremental encoder

External diameter: 40mm

Thickness: 20mm

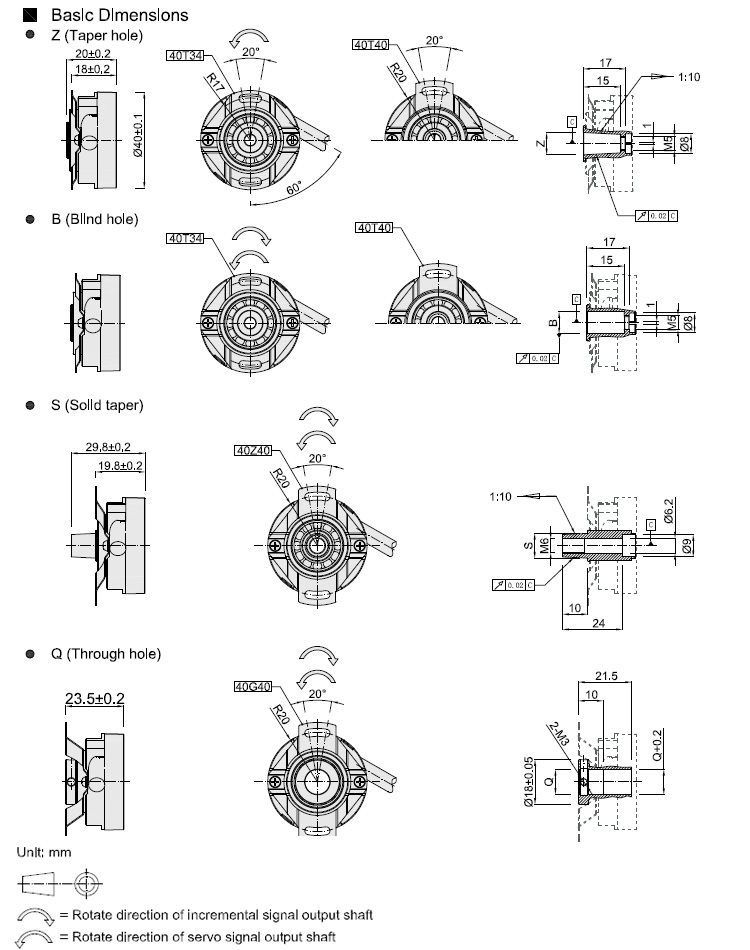

Installation dimension: R17mm, R20mm;R23mm

Hollow shaft type: blind hole; through hole, taper hole,solid taper shaft

Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Protection grade: IP40

Cable length: 500mm

KN40 rotary encoder model no. for reference

KN40-J4C10000Z9

KN40-J6E8192S10

KN40-J12C5000/6B6

KN40-J2F8192B8

KN40-J3NH5000B10

KN40-J4C2048B9.52

KN40-J6E4096Q6

KN40-J2V5000B6

KN40-J3F4096B8

Parameter table of KN40 Hollow shaft encoder


Brand HENGXIANG
External Dimensions External diameter: 40mm
Thickness: 20mm
Shaft diameter:6mm/8mm/9mm/9.52mm/10mm
Resolution 1024;2048;4096;5000;8192;10000;16384;20000
1000/41000/6; 1000/8;1024/41024/6;1024/8;2048/4;2048/62048/8;2500/42500/6; 2500/84096/44096/64096/85000/45000/65000/8
Output Phase Phase A,B,Z,U,V,W,
Supply voltage DC5V & DC8-30V
Outlet type Cable out from side
Output Mode Collector open circuit output(NPN &PNP)
Voltage output
Line Driver (26LS31)
Line Driver ( 26C31)
Line Driver(IC-HD7)
Environmental temperature Operating temperature:-20~+100° (Non icing)
Storage temperature: -25~+110° (Non icing)
Environmental humanity Operating and storage: 35~90%RH (non-condensing)
Protection grade IP40
Cable length 500mm (cable length could be added )
Shell Aluminium
Package Carton box
Net weight About 90g (with package)
Certification CE


More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.

About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO90012000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's RequirementCreating Social valueserving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

Few Questions you may like to know before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.
