Product introduction：
-Encoder type: Opticla Incremental encoder
-Shaft : Φ8mm;Φ10mm;Φ6mm
-Resolution : up to 2500P/R
-Supply voltage : DC5V&DC8V-30V
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀35mm
Product introduction：
-Encoder type: Opticla Incremental encoder
-Shaft : Φ8mm;Φ10mm;Φ6mm
-Resolution : up to 2500P/R
-Supply voltage : DC5V&DC8V-30V

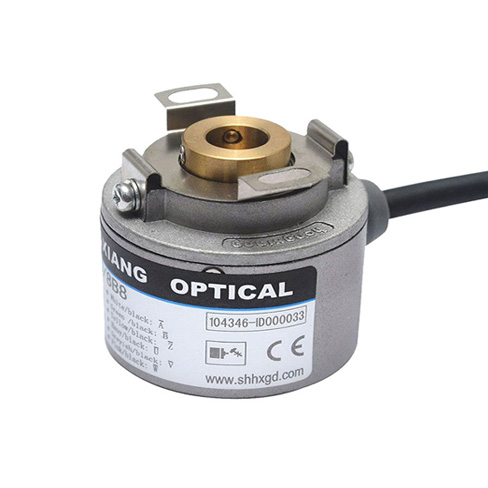

Servo Motor encoder Hollow Shaft encoder Blind hole 8mm external diameter 35mm K35 miniature rotary encoder
Key Features of K35 servo motor encoder
Bearing life: 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature: Operating:-20 ～+80°；storage:-25 ～+90°
Vibration(endure): Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure): 490m/s2 ,11 ms three times for X,Y,Z direction individually
Certification: CE
Top REV: 5000RPM
Mark to Space ratio: 45% to 55%
Shaft load: Radial 30N; Axial 20N
Some Related K35 encoder model number
K35-J12C2500/8B6 DC5V spring plate 35T40
K35-J12L2000/4B8 DC5V spring plate 35T29
K35-J3N2500/16B10 DC5-12V spring plate 35T29
K35-J3F1200B6 DC12-24V spring plate 35T29
K35-J6S2500/8B8 DC5V spring plate 35T29
K35-J6C2000B10 DC5V spring plate 35T40
K35-J6E720B6 DC8-30V spring plate 35T29
K35-J12C1000/4B8 DC5V spring plate 35T40
K35-J12L2048/6B10 DC5V spring plate 35T40
| Items | Basic parameters | |
| External dimensions | External diameter: 35mm | |
| Thickness: 35mm | ||
| Shaft diameter: 6mm/8mm/10mm | ||
| Resolution | 100;200;250;256;300;360;400;450;500;512;600;1000;1024;1200;2000;2048;2500; | |
| 1024/6；1024/8；2000/4；2000/6；2000/8；2048/6；2048/8；2500/4；2500/6；2500/8 | ||
| Output phase | Phase A,B,Z A- B- Z-,U,V,W | |
| Supply voltage | DC5V & DC12-24V | |
| Outlettype | Cable out from side (with metal sleeve) | |
| Output mode | NPN/PNP(Open Collector Output) | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) Compatible RS422 | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 | |
| Cable length | 500mm | |
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 100g (with package) | |
| Certification | CE | |
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Lead time:
1-3 working days for sample
7-10 working days for mass production
Our Selling points
· Utility Model Patent Certificate
· Own brand and unique brand
· CE certification for all models
· Prompt delivery date
· 100% full inspection before shipment
· Customers from about 200 countries
· IS09001:2015 Certification
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
About Our Factory
o Own brand of "HENGXIANG" encoder
o Has ISO9001：2000 Quality Management System Certificate and CE Certification
o Invention patents five and utility model patents five
o Passed Shanghai New and High-tech Achievements Transformation Project.
o Our target: Meeting Client's Requirement、Creating Social value、serving clients attentively and Achieving win-win.
o Located in Shanghai city
o 20-30 experienced workers
