Product introduction：
- Micro optical encoder
-Small volume , external diameter Φ18mm , thickness 18mm
-D shape solid shaft：Φ2.5mm
-Max pulse to 1600ppr
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀18mm
Product introduction：
- Micro optical encoder
-Small volume , external diameter Φ18mm , thickness 18mm
-D shape solid shaft：Φ2.5mm
-Max pulse to 1600ppr

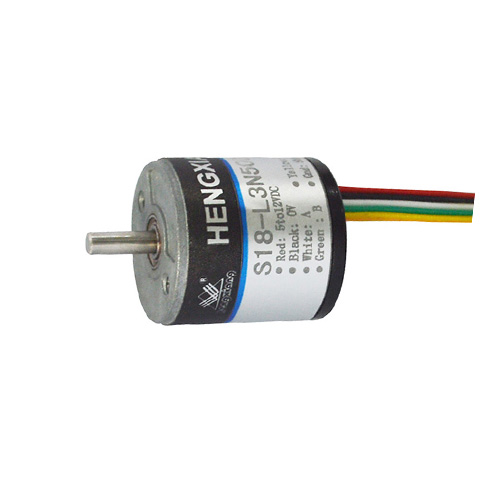

S18 mini Solid Shaft encoder Micro optical encoder OML-100-2MC thickness 18mm installation size 12mm NPN output
S18 incremental encoder Characteristics
· Power supply voltage 5V or 8-30V
· Circuit output Signal: NPN&PNP
· Sensing basic : photoelectric
· Pulse per turn: 250ppr-1600ppr
· Max motor speed 5000rpm
· Protection level grade IP50
· Ribbon cable outlet
· Cable outlet from Radial or Axial
· Output Phase: ABZ
· Material: Aluminum Alloy
· Top Response Frequency: 100KHZ
· Gross weight 20 grams
Production video
There are plenty of encoder videos if you still have any doubts on encoder, please email us directly or contact online service right now.
At the same time, you could also visit our YOUTUBY page easily.
Most of the encoder series have videos for reference.

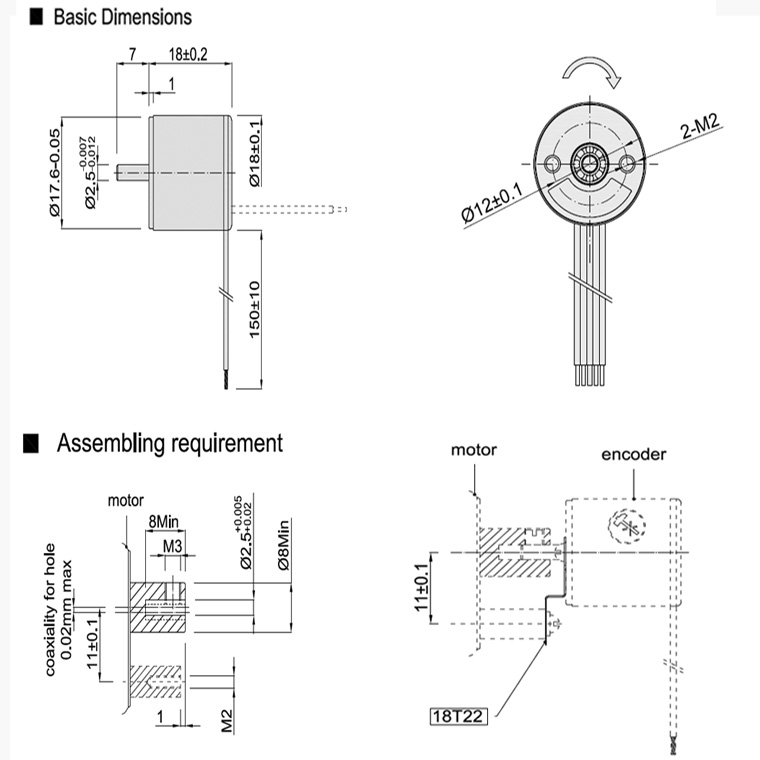

S18 encoder Description
| Brand | HENGXIANG | |
| External dimensions | External diameter: 18mm | |
| Thickness: 18mm | ||
| Solid Shaft Diameter: ⌀2.5mm | ||
| Resolution | 36;50;60;100;200;250;256;360;400;500;1000;800;1600 | |
| Output phase | Phase A,B,Z | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side | |
| Cable out from back | ||
| Output mode | Collector open circuit output(NPN &PNP) | |
| Environmental temperature | Operating temperature: -10~+70° (Non icing) | |
| Storage temperature: -15~+75° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Top Resonse Frequency | 80kHz Max | |
| Top Rev | 3000rpm | |
| Protection grade | IP40 | |
| Cable length | 150mm | |
| Shell | Aluminium | |
| Package | Carton box | |
| Net weight | About 20g (with package) | |
| Certification | CE | |
