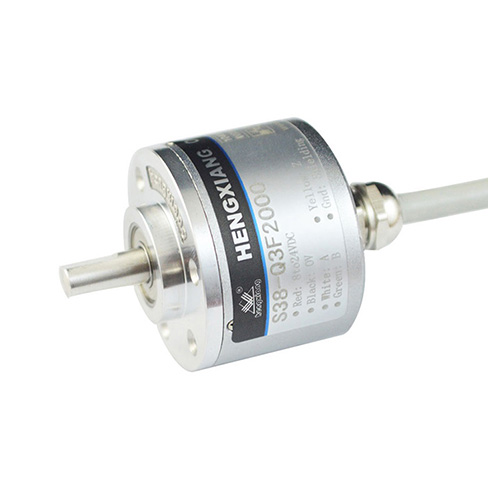

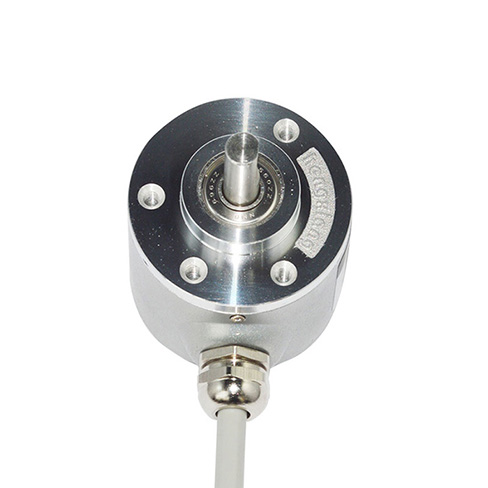

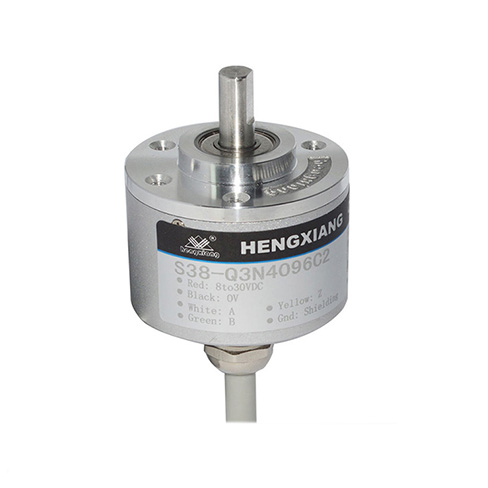

S38 Solid Shaft rotary encoder,spindles encoder Portable encoder weight 120g sensor encoder totem pole output 1200ppr for textile industry

Product introduction:

-Incremental type (solid shaft)

-External dimensions : external diameter : Φ38mm, thickness : 28mm

-Diameter of shaft:Φ6mm (D type)

-Connect type :Cable out from side or back

Data download
Detail display

S38 Solid Shaft rotary encoder,spindles encoder Portable encoder weight 120g sensor encoder totem pole output 1200ppr for textile industry


Product Information

Protection grade: IP50 & IP65

Solid Shaft diameter 6mm (D shape)

Shaft length13mm

Consumption current: 100mA MAX

Load Voltage: DC30V

Top REV: 5000RPM ;IP653000r rpm

Environmental temperatureOperating:-20 +90°;storage:-25 +100°


Principle of encoder

A logic gate interprets certain input voltages as high (logic 1) or low (logic 0).

TTL (transistor-transistor-logic): A signal above 2 V is interpreted as logic 1 and a signal less than 0.8 V is interpreted as logic 0. The output voltage ranges between 0-5 V.

HTL (high-threshold-logic): A signal above 3 V is a logic 1 and a signal less than 1 V is a logic 0. The high output signal level is dependent from the supply voltage. Because of the higher voltage difference between logic 0 and 1, the HTL logic is more immune to interference and more resistant against electrical noise.

Specification


Items Basic parameters
External dimensions External diameter: 38mm
Thickness: 28mm
Shaft diameter: 6mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;500081921000016384
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 120g (with package)
Certification CE



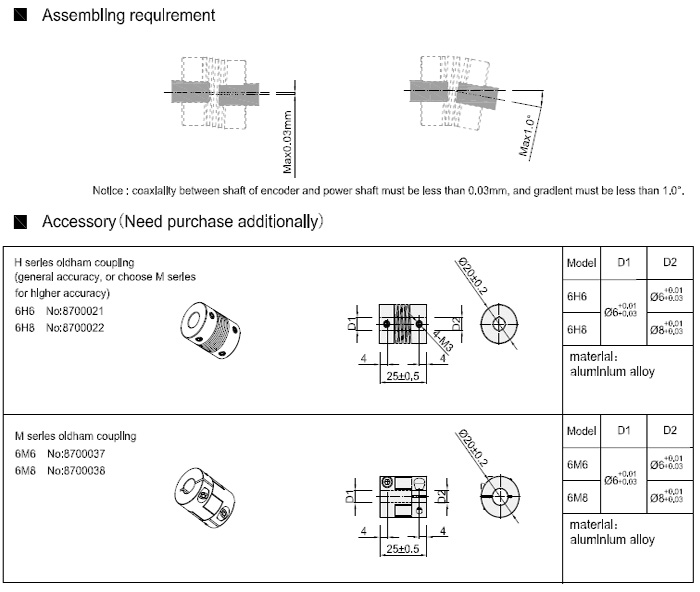

More details



Production video

Please email us directly or contact online service right now to get the latest video, otherwise you could visit our YOUTUBE page.


Payment terms

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready


FAQ

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.
