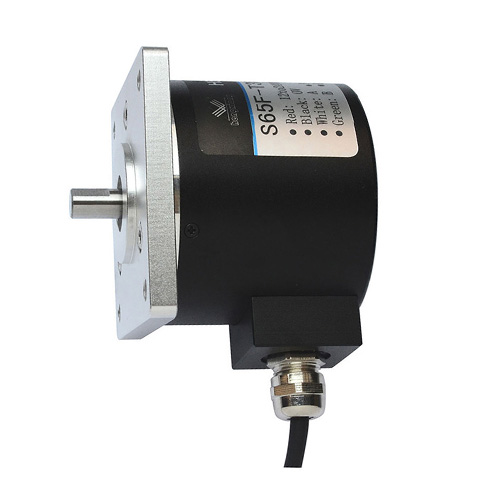

S65F solid shaft rotary encoder 2048 resolution universal rotary encoder flange diameter 67*67mm for textile industry

Product introduction:

-Incremental solid shaft rotary encoder

-Shaft Diameter:Φ8mm (D type)

-Pulse per turn:50ppr to 23040ppr

-Mark to Space ratio:45% to 55%

Data download
Detail display

S65F solid shaft rotary encoder 2048 resolution universal rotary encoder flange diameter 67*67mm for textile industry


About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO90012000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's RequirementCreating Social valueserving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

S65F encoder model no. to choose

S65F-T3FH20000

S65F-Q3PH23040

S65F-T2N16384

S65F-Q1V11520D

S65F-T6C10000

S65F-Q4E5000D

S65F-T3F4096

S65F-Q2V3000

S65F-T1N2500D

S65F-Q6E2048

S65F-T4C2000D

S65F-Q3FH1440

Detail Specifications for S65F Series Rotary Encoder


Items Basic parameters

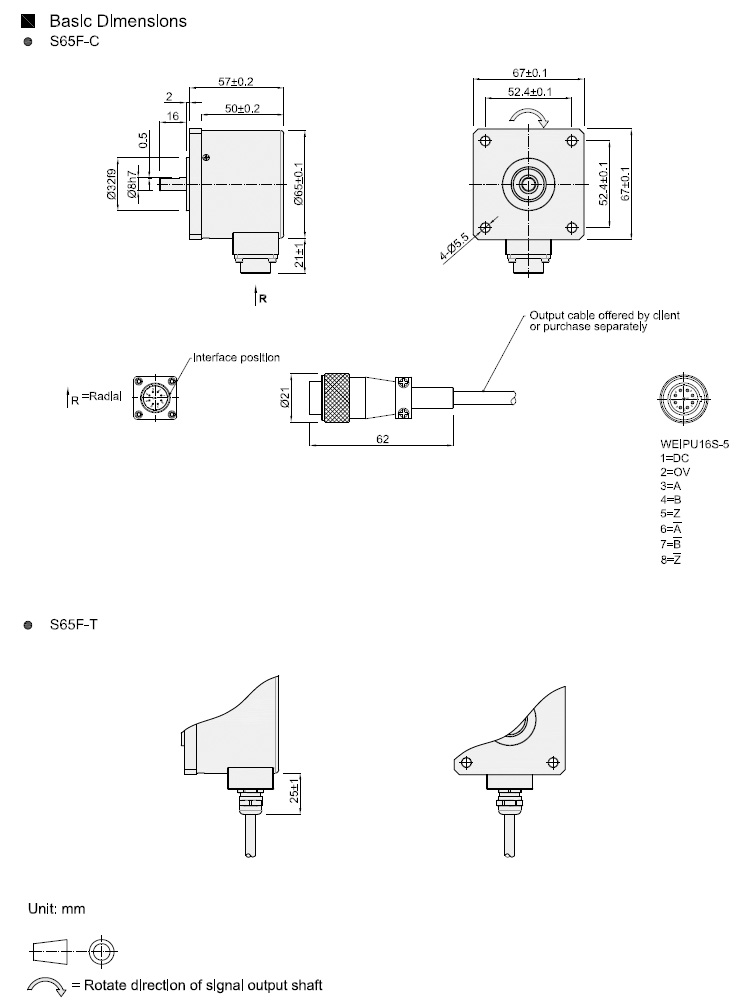

External dimensions External diameter: 65mm,Thickness: 52.5mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side with metal sleeve
Socket out from side
Output mode Open Collector(NPN) circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 190g (with package)
Certification CE



More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.




ENCODER TECHNOLOGY THEORY

An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.

Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.

Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.

With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.

The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.

Replacement of Older Output Drivers
