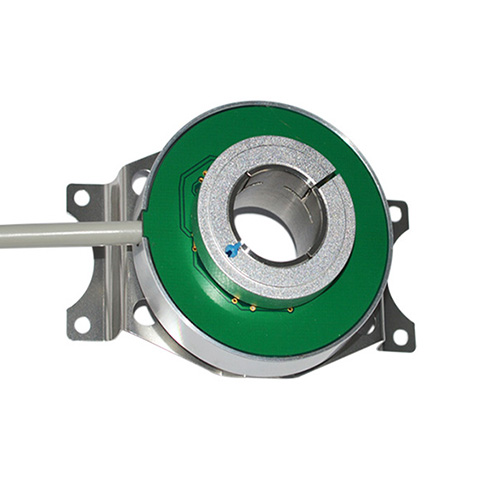

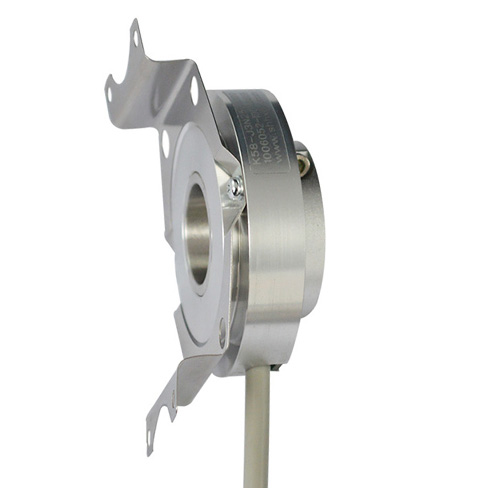

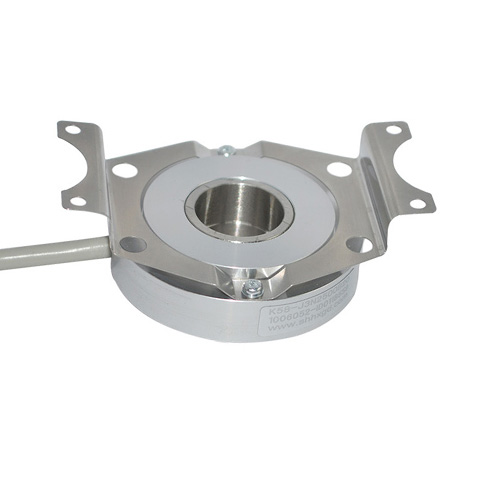

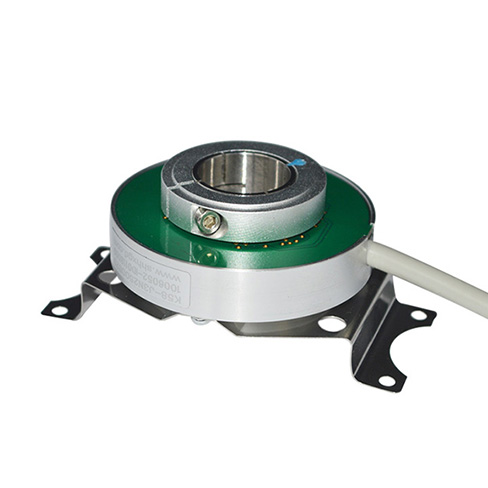

Product introduction：
-External diameter : Φ58mm, thickness : 24mm
-Shaft : Φ15mm;Φ16mm;Φ18mm;Φ20mm；Φ22mm
-Resolution : Max to 28800P/R
-Phase； A;B;Z;U;V;W
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀58mm
Product introduction：
-External diameter : Φ58mm, thickness : 24mm
-Shaft : Φ15mm;Φ16mm;Φ18mm;Φ20mm；Φ22mm
-Resolution : Max to 28800P/R
-Phase； A;B;Z;U;V;W
| ITEM | PARAMTERS | ||||||
| External dimensions | External diameter: 58mm ;Thickness: 24mm ;Shaft diameter: 15mm/16mm/18mm/20mm/22mm | ||||||
| Resolution | 1000;1024;1250;2000;2048;2500;5000;7200;14400；16384；28800; 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8 | ||||||
| Output phase | Phase A,B,Z,U,V,W | ||||||
| Outlettype | Cable out from side | ||||||
| Protection grade | IP50 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 150g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | VL-Voltage output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | |||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | 100mA MAX | ||||
| Top response frenquency | 100KHZ | 200KHZ | 300KHZ | ||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±50mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥2.5V | ≥-3V | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≤0.5V | ≤1V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | ≤100ns | ||||
| Origin motion | low lelvel available | ||||||
| starting torque | 9.8x10-3 N.m(100gf.cm) Max | ||||||
| Intertia moment | 6.5x10-6kg.m2 Max | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° | ||||||
| Enviromental humidity | Operating and storage: 35-90%RH(noncondensing) | ||||||
| Vibration(endure) | 49m/s2 (5G)(5-2000Hz) for 2 hours/axis | ||||||
| Sock(endure) | 980m/s2(100G) 11mesc,3 times/ direction | ||||||
| Material | Die Cast Aluminum | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
