Product introduction：
-External diameter : Φ76.5mm, thickness : 28mm
-Shaft : Φ30mm ；Φ18mm；Φ20mm；Φ22mm；Φ25mm，Φ28mm
-Pulse per round : Min 100ppr, Max 32768ppr
-Mark to Space ratio : 45% to 55%
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀76mm
Product introduction：
-External diameter : Φ76.5mm, thickness : 28mm
-Shaft : Φ30mm ；Φ18mm；Φ20mm；Φ22mm；Φ25mm，Φ28mm
-Pulse per round : Min 100ppr, Max 32768ppr
-Mark to Space ratio : 45% to 55%

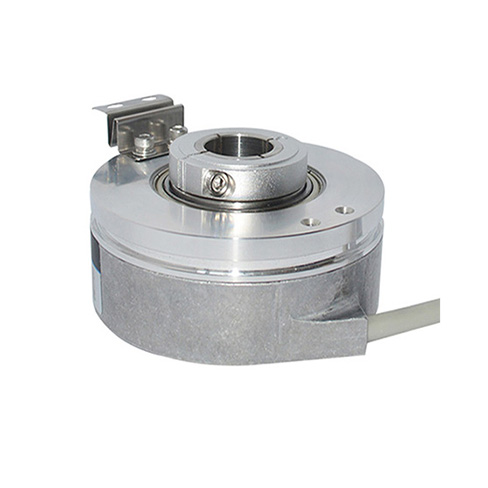

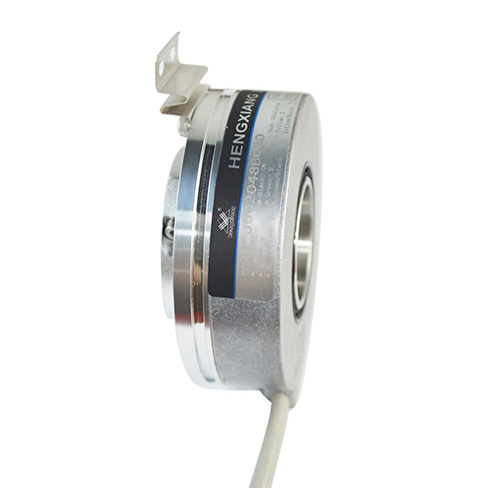

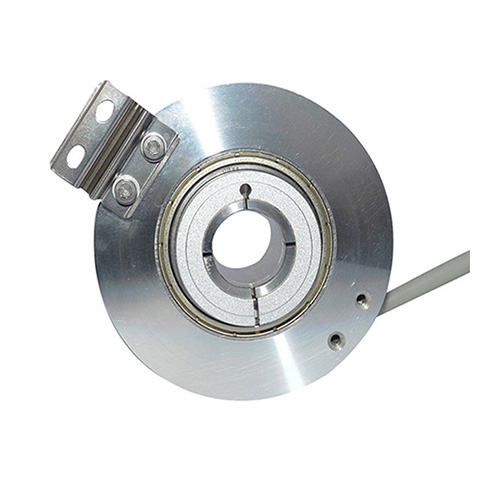

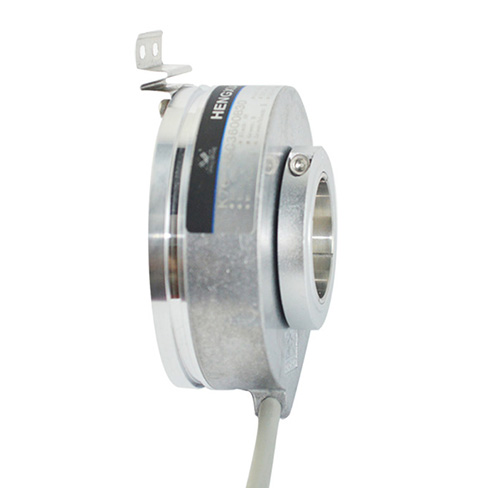

K76 Incremental Hollow Shaft Encoder quadrature rotary encoder 3600 resolution hollow shaft 28mm line driver output for motor
Quick description for K76 encoder
Encoder type: Incremental encoder
Brand: HENGXIANG
External diameter: 76.5mm
Thickness: 37mm
Protection grade: IP50
Cable length: 1000MM
Certification: CE
Package: Carton box
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product
ability;
Factory directly provide a
competitive price;
One-stop service--for your efficient
purchasing experience;
OEM design accepted--customized design, your own brand accepted.
K76 encoder main Characteristics
| ITEM | PARAMTERS | ||||||

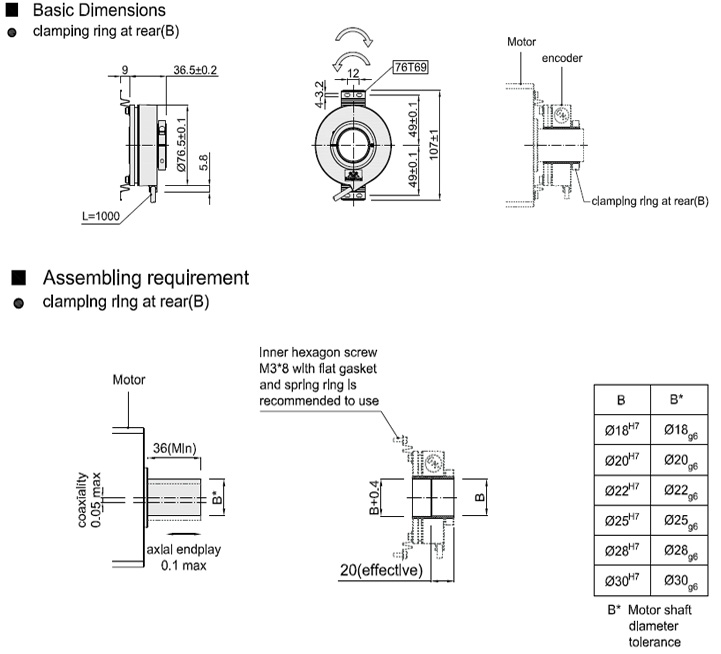

| External dimensions | External diameter: 76.5mm ;Thickness: 28mm ;Shaft diameter: 16mm;18mm,20mm,22mm,25mm,28mm,30mm | ||||||
| Resolution |
100;200;250;256;360;500;512;600;512;600;700;800;900;1000;1024;1200;2000;2048;2500; 3000;3600;4096;5000;7200;8192;14400;16384;28800;32768 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Cable out from side | ||||||
| Protection grade | IP50 & IP65 &IP67 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 370g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | |||||
| Top response frenquency | 100KHZ | 200KHZ | |||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5v | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | |||||
| Origin motion | low lelvel available | high level available | low level available | high level available | |||
| starting torque | less than 10mN.m | ||||||
| Intertia moment | less than 3x 10-6kg.m2 | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | ||||||
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for three axis individually | ||||||
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | ||||||
| Material | Main body: aluminium alloy | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
Shipment
o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
o You could select the express according to your requirements if freight collector
o If you do not have any courier account, we will check and find a cheapest and safety express for you.
o Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Notice for encoder installation
1. Please read the encoder specification carefully before installation
2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
8. The encoder cable signal can’t be drew or bent forcibly.
