Product introduction：
-Flange Solid Shaft encoder Heavy industrial encoder
-Diameter of shaft : Φ15mm , key way : 5*5mm
-Connect type :Cable out from side
-Power supply voltage:DC5V-30V
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀65mm
Product introduction：
-Flange Solid Shaft encoder Heavy industrial encoder
-Diameter of shaft : Φ15mm , key way : 5*5mm
-Connect type :Cable out from side
-Power supply voltage:DC5V-30V

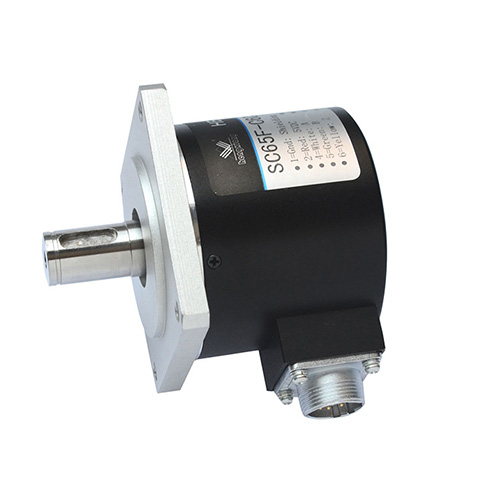

SC65F Flange Solid Shaft encoder Heavy industrial encoder diameter 65mm 10000ppr with flange
Our Service
o Quick response once received customer’s quotation query
o Professional engineer team, to solve your problems at any time
o Strictly inspection before shipment
o Various encoder models to be selected
o Short lead time
o High quality standard
Detail Specifications for SC65F rotary encoder
|
Items |
Basic parameters | |

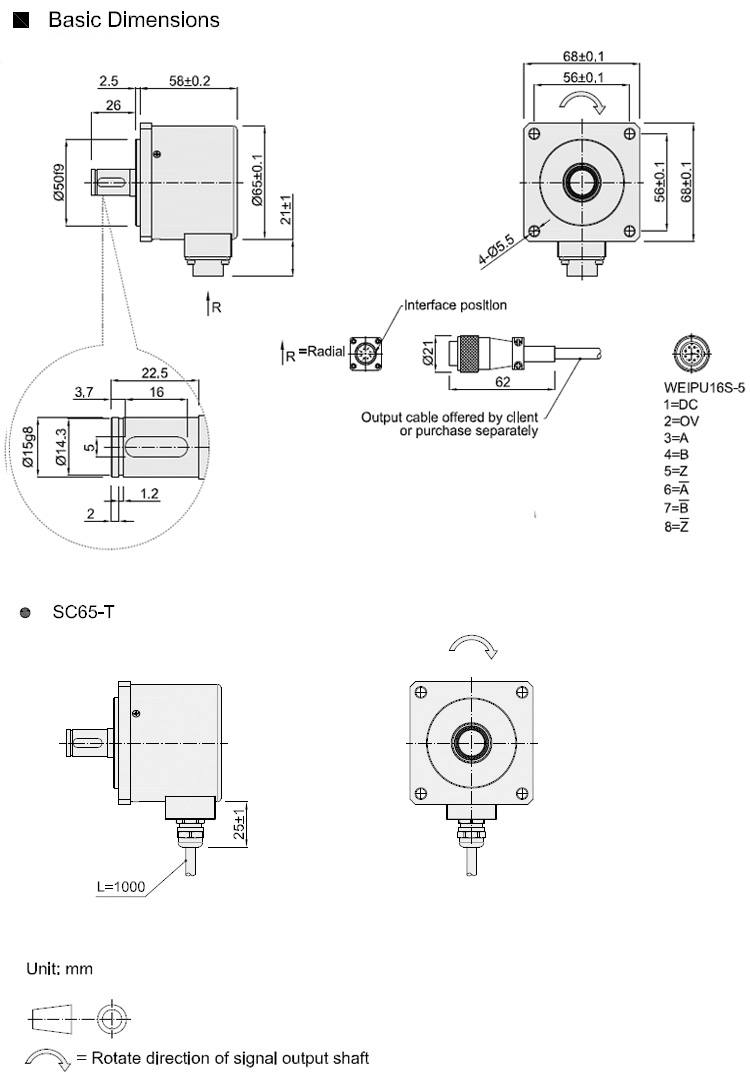

| External dimensions | External diameter: 65mm,Thickness: 58.5mm | |
| Installation Size:56*56mm, Key Slot 5mm*5mm | ||
| Shaft diameter: 15mm | ||
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 | |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; | ||
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 | ||
| Output phase | Phase A,B,Z or A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |

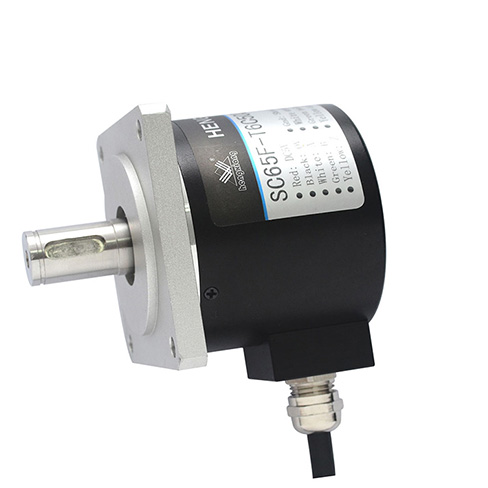

| Outlettype | Cable out from side with metal sleeve | |
| Socket out from side | ||
| Output mode | Open Collector(NPN) circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 590g (with package) | |
| Certification | CE | |
More details
ENCODER TECHNOLOGY THEORY
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Questions you may like to know before ordering
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
