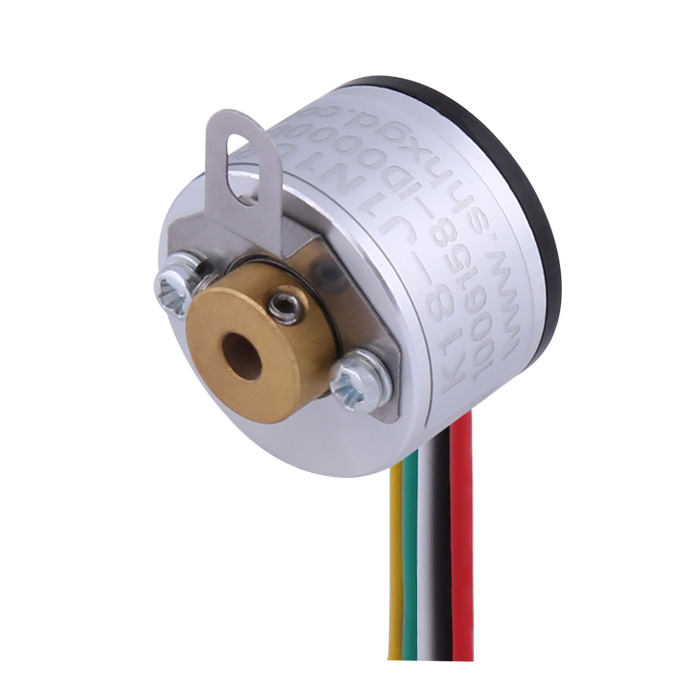

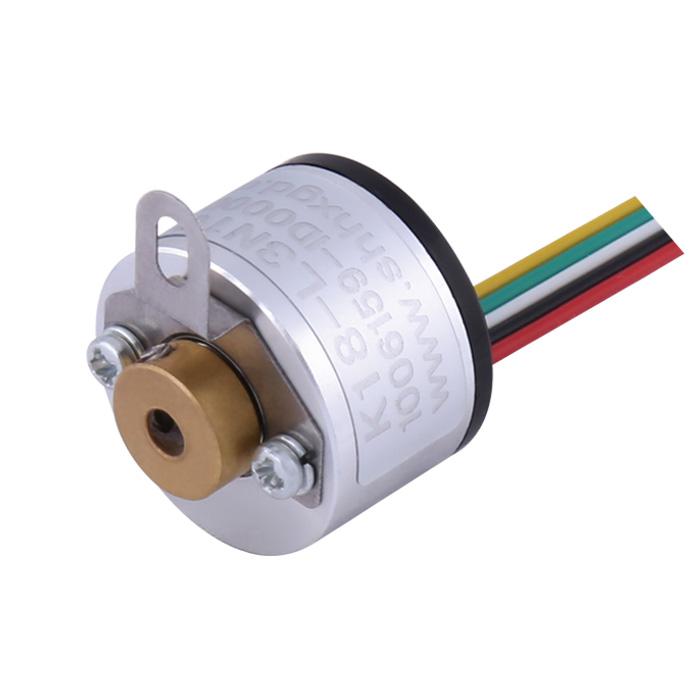

K18 incremental small size optical encoder

Product introduction：

-External diameter : Φ18mm, thickness : 15.3mm

-Shaft : Φ2.5mm)

-Resolution : up to 1600/R

-Supply voltage : DC5V;DC8V-30V

Data download

Detail display

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	18mm
Thickness	15.3mm
Installation dimension	R11mm, spring plate 18T22
Hollow shaft diameter	2.5mm
Resolution	250;256;360;400;500;512；720；800；1000;1024；1440;1600
Output phase	Phase A,B,Z
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	Collector open circuit output(NPN &PNP)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Consumption current	50mA MAX
Top response frenquency	100KHZ
Rise/ Fall time	100nsec Max
starting torque	less than 5x 10^-4N.m
Intertia moment	less than 0.3x 10^-6kg.m²
Shaft load	Radial 2N; Axial 2N
Top REV	3000r rpm
Environmental temperature	Operating:-10 ～+70°；storage:-15 ～+75°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)	49m/s² ,three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	aluminium alloy
Cable length	150mm
Certification	CE
package	Carton box
Net weight	About 20g (with package)
