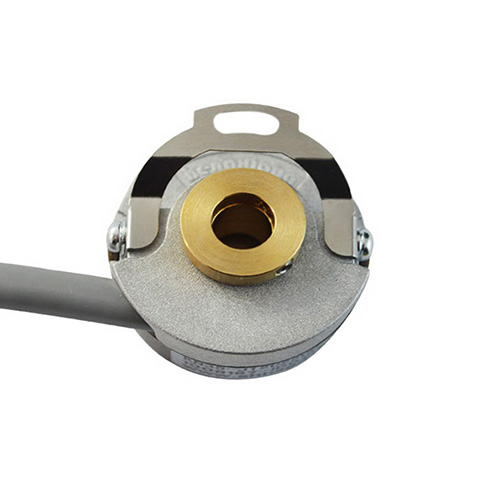

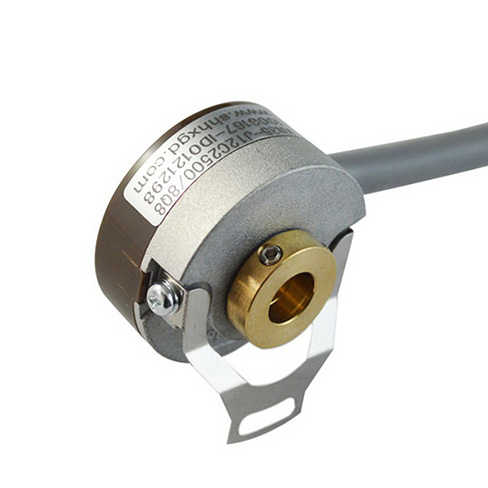

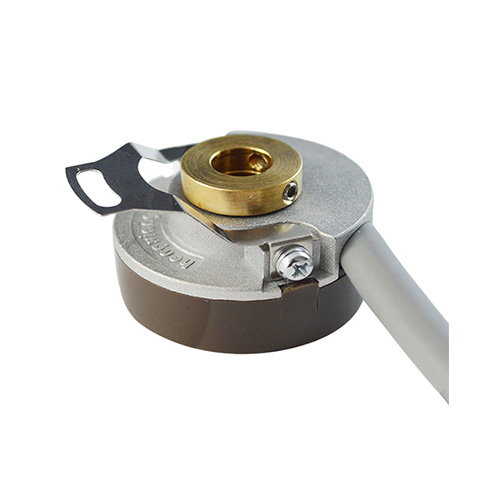

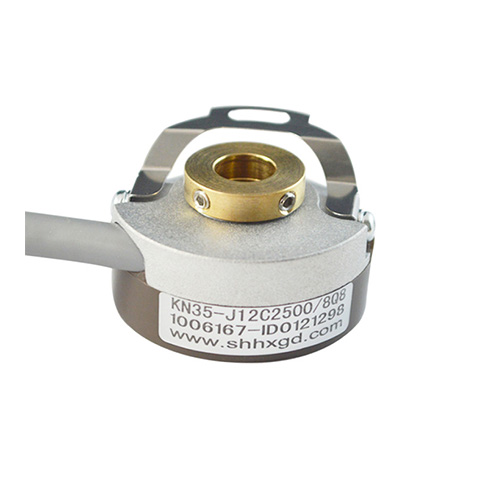

KN35 Servo Motor Encoder Incremental Encoder

Product introduction:

-External diameter Φ35mm,thickness 18mm

-Resolution: Max to 14400P/R

-Supply voltage: DC5V & DC8-30V

-Protection:IP40

Data download
Detail display

Brand HENGXIANG
External Dimensions External diameter: 35mm
Thickness: 18mm
Shaft diameter:6mm/7mm/8mm
Resolution 1024;2048;2500;3600;5000;7200;10000;14400
1000/6; 1000/8; 1024/6; 1024/8; 2048/6; 2048/8; 2500/6; 2500/8
Output Phase Phase A,B,Z,U,V,W,
Supply voltage DC5V & DC8-30V
Outlet type Cable out from side
Output Mode Collector open circuit output(NPN &PNP)
Voltage output
Line Driver (26LS31)
Line Driver ( 26C31)
Line Driver(IC-HD7)
Environmental temperature Operating temperature:-20~+100° (Non icing)
Storage temperature: -25~+110° (Non icing)
Environmental humanity Operating and storage: 35~90%RH (non-condensing)
Protection grade IP40
Cable length 500mm (cable length could be added )
Shell Aluminium
Package Carton box
Net weight About 80g (with package)
Certification CE

More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production


Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.


About HENGXIANG encoder Factory

our factory founded in 2001, ,main encoder products are China rotary encoder, incremental encoder, absolute encoder, magnetic

encoder, servo motor encoder, cnc rotary encoder,

encoder module, encoder disc, encoder code, solid shaft encoder, hollow shaft encoder, spindle encoder,elevator encoder, industry encoder, etc

we could offer all kinds of encoders according to customer's requirements.

After more than 17 years of continuous development and efforts, our factory has built the engineer team,including 5-7 professional

engineers, both are highly experienced in study and develop in high technology of encoder.

As a professional manufacturer of rotary encoders, our factory independently develops dozens of product series, which are widely

used in elevators, servo motors, CNC machine tools, textile machinery, robots, wind power,

medical, assembly lines and other automation industries, with operations in 34 provinces and cities nationwide.

And more than 170 countries and regions around the world, won the trust and praise of customers.

Our SHANGHAI HENGXIANG ENCODER FACTORY has obtained a number of invention patents and utility model patents, and passed

the “Shanghai High-tech Achievement Transformation Project” certification,

ISO9001 quality management system certification and CE certification.
Our aim: to meet customer needs, create social value, service with heart, and work together for a win-win situation!
We warmly welcome new and old customers at home and abroad to come to the field to inspect and select and customize “Hengxiang” products.
